Shopify Meta Pixel Setup: Conversions API & Data Sharing

Setting up the Meta pixel on Shopify touches four places: your store's privacy settings, the Facebook & Instagram sales channel, Customer events, and Meta Events Manager. The clicks are few. The decisions around them — which route, which data-sharing level, what to remove first — decide whether one order reaches Meta as one purchase.

This guide follows Shopify's Help Center and Meta's own help pages as read on October 11, 2026, and says so wherever the two disagree or stay silent.

Already know your route? Go straight to the eight setup steps. If the pixel is live and Meta's numbers look wrong, start at events missing or doubled.

What You Are Setting Up: Pixel, Conversions API, Dataset

You are connecting two ways of sending the same store activity to Meta. The Meta pixel is, in Meta's words, “a piece of code that you put on your website”; the Conversions API is designed to create a direct connection between your marketing data and Meta.

On Shopify you paste neither. Both are switched on inside one sales channel, and what you see on Meta's side afterwards is a dataset in Events Manager.

Three Ways to Connect the Meta Pixel to Shopify

Shopify gives a store one place for tracking code, Settings > Customer events, and two ways to add a pixel there: app pixels, installed through marketing and data collection apps, and custom pixels, added manually by a developer. Its advice between the two is plain.

For Meta, the route Shopify documents on its Meta pixel page is the Facebook & Instagram channel.

One caveat about names: Shopify defines app pixels as scripts installed as part of a third-party app or sales channel, but none of the Shopify Help Center pages we read calls the channel's pixel an “app pixel” in those words (see what we looked for and did not find). In our development store, on October 12, 2026, the installed channel was already listed as a pixel under Customer events before any Facebook account was connected.

A custom pixel is the route for a store that needs its own event logic. Shopify says custom pixels help you collect customer events on even more pages of your online store, such as the checkout and post-purchase pages.

The price is ownership. Shopify states that adding and using custom pixels is unsupported and that it is an advanced feature that requires JavaScript knowledge. It also says Meta's pixel SDK doesn't automatically transmit data from a Shopify custom pixel, and that any HTML in the third-party code needs to be removed, because the pixel sandbox only supports JavaScript.

Google Tag Manager is the same route under another name: Shopify says you can run GTM as a custom pixel, so everything above applies to it. Whether your store needs GTM at all, how to build the container, and how Consent Mode v2 fits Google's tags are covered in our guide to Google Tag Manager on Shopify. Its answer for Meta matches Shopify's advice here: use the channel unless you have a specific reason not to.

What happened to pasted pixel code?

Most older tutorials describe a fourth route: paste Meta's code into the theme, into a field under Online Store > Preferences, or into the Additional scripts box in the checkout settings. Each of those has changed.

Shopify's own pages are out of step on the Preferences field. Its pixel migration page says the Meta pixels there were removed as of February 2025 and converted to custom pixels “to attempt continuity in your measurement”, while its Meta pixel page still carries a section on removing a pixel from Preferences.

If you remember pasting a pixel ID into that field, look under Settings > Customer events instead: a converted pixel sits with your custom pixels. Shopify's instruction for it is short — migrate your Meta pixel to the Facebook & Instagram channel.

Moving off Additional scripts can show up as fewer events, and Shopify explains why: app pixels and custom pixels only track customer behavior with consent, “whereas consent is often not set up properly in additional scripts or checkout.liquid code”.

Hand-pasted snippets are the opposite case. Shopify warns that code snippets can be used to bypass customer consent requirements, which violates the Shopify Terms of Service and can lead to legal liability for you. The wider move off the old Thank you and Order status pages is covered in our checkout extensibility guide.

Which Route Fits Your Store?

The three-route table answers by route. The five questions below answer by situation: what is already in your store, who else touches your tracking, what you need to measure, where your visitors are and which data you are prepared to send.

No answer is wrong here. Each result is a legitimate route with its first moves, not a score.

What to Have in Place Before You Connect

A setup that stalls usually stalls on access, not on the pixel. Check the items below before the first click.

Accounts and permissions

Shopify's requirements and setup pages for the channel list what has to be true before you start:

• A Shopify online store that is not in private mode.
• A Sender email for the store that is a valid email address.
• A published Facebook Page that belongs to the business.
• A personal Facebook account with full control of both the business portfolio and that Page.
• A business portfolio that owns the Page: during onboarding, the portfolio you select must be the Page's owner.
• For advertising, a Facebook ad account. Shopify says you need to connect one to create Facebook ads, and to add one to your business portfolio if you've never run ads with a personal ad account.

Staff don't inherit the connection. If a staff member sets the channel up, Shopify says it is displayed to all other staff but won't display as connected for them, and that staff member's own Facebook account needs the same full control of the portfolio and the Page.

Inside Shopify, three permissions are in play. Shopify says that to manage app pixels you need the Manage and install apps and channels permission, while viewing Customer events and managing custom pixels each have their own. Our FAQ on which permission manages app pixels shows where each one sits.

Is the channel free, and on which plans?

Shopify's Help Center says the channel is free to use with all Shopify plans, subject to store eligibility. The App Store listing read “Free to install. Additional charges may apply.” on October 11, 2026.

The charge the listing itself names is advertising: you set the budget, and the ad spend is billed directly to your Facebook ad account.

The two companies describe the plan floor differently. Shopify's page says all Shopify plans; Meta's help page on the Shopify integration lists “The Basic Shopify plan or higher” among its requirements. None of the Shopify pages we read on October 11, 2026 says whether the channel can be installed on the Starter plan.

If you are on Starter, the install screen is what governs. Add the channel from the listing and see whether your store is accepted before you plan a campaign around it.

Availability also depends on where the business is. Shopify's product page says channel features are subject to regional availability, and the country requirement its Help Center publishes is the list of supported countries for Shops on Facebook and Instagram.

How to Add the Meta Pixel Through the Channel

The pixel is added in the channel's settings, but the settings around it sit in four places: Shopify's Customer privacy page, the channel, Customer events, and Meta Events Manager. The checklist puts them in working order.

Steps one, seven and eight apply on every route. Steps three to five are the channel route; on a custom pixel or GTM your own build replaces them, and step two still comes before your build. If the channel is already connected, start at step four to see which level is on, then continue to step six; go back to step two only if old pixel code may still be on the store.

Tick steps off as you go — progress is saved in this browser.

Add the channel and connect your Meta assets

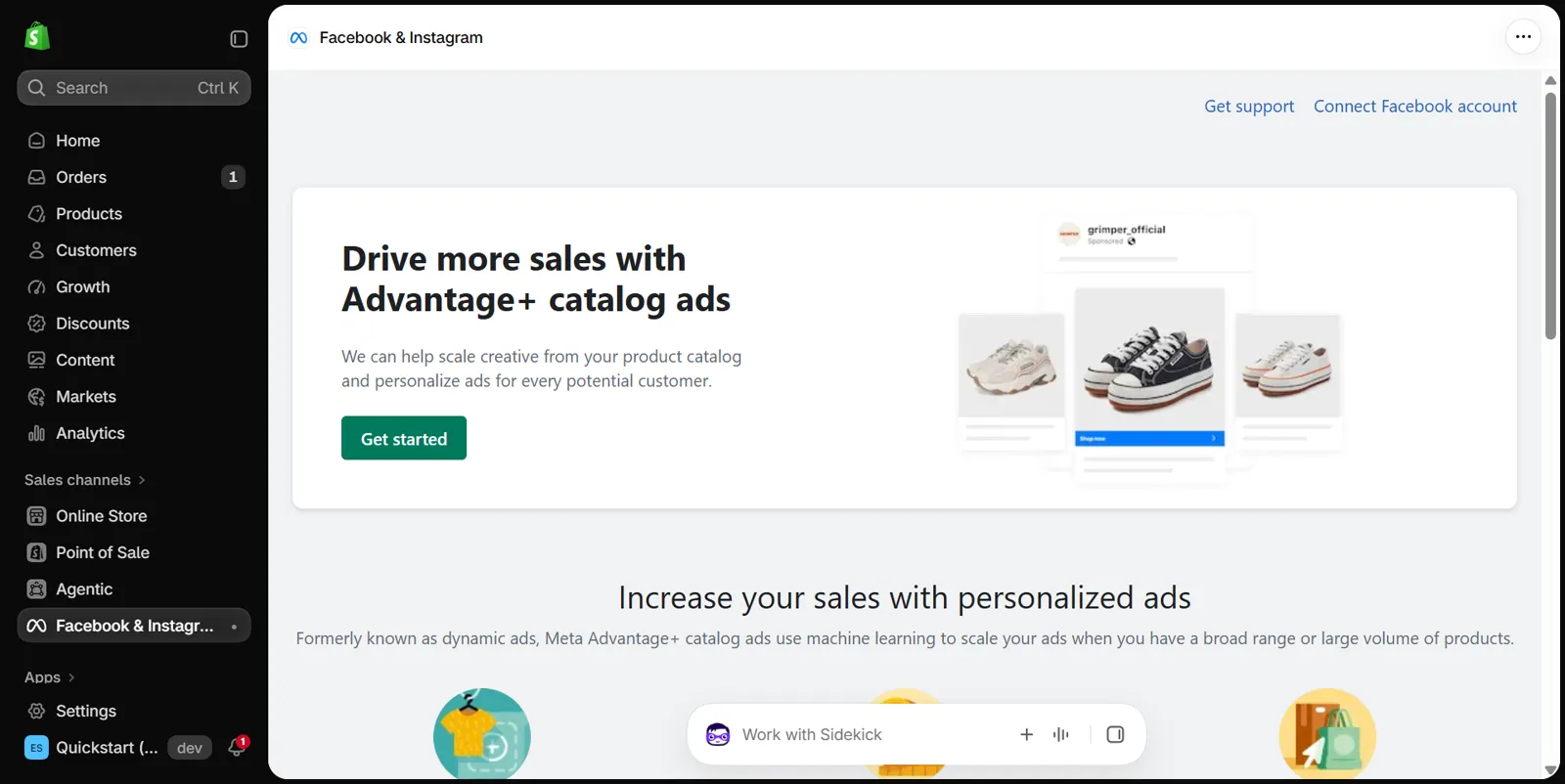

The pixel lives inside the Facebook & Instagram sales channel, so the channel comes first. Shopify's setup page has you click Start set up on the feature that you want to install first; Meta's version of the same steps includes following the prompts “to install features for commerce, ads and Meta Pixel setup”. Shopify adds that a Meta pixel can be added when you're setting up Instagram Shopping or Facebook Shop.

Zoom

The full install — finding the channel in the App Store, the permissions screen, connecting the account — is walked through click by click in our guide to installing and connecting the channel. One detail from the setup page matters for troubleshooting later: the channel is maintained by Meta, and Shopify says it has limited insight into the onboarding errors.

Turn on customer data sharing

Shopify's Meta pixel page gives the path in the admin:

1. From your Shopify admin, go to Sales channels > Facebook & Instagram.
2. Click Settings, and then click Share data settings.
3. In the Customer data-sharing section, click the Enable data-sharing toggle.
4. In the Choose data-sharing level section, select Standard, Enhanced or Maximum.

The order is fixed. Shopify says that before you can add a Meta pixel you need to activate data sharing, and that to use a Meta pixel you need to set a customer data-sharing level.

You don't have to choose blind at step four. In one line each, in Shopify's terms:

• Standard sends only customer behavior, collected by the Meta pixel in the browser.
• Enhanced uses Facebook's Conversions API as well as the Meta pixel, and shares your customer's personal information to match users on Facebook's network.
• Maximum uses Facebook's Conversions API and the Meta pixel, shares the same personal information as Enhanced, and “is updated with Facebook's latest advertising technology”.

The level can be changed at any time in the channel's settings, so this is not a one-way door. If your privacy policy is not ready to name a customer's personal details, Standard keeps the sharing to behavior. The three are compared in full, with how to choose between them, under what each level sends to Meta.

Two things to expect on screen. Shopify's Help Center names this screen Share data settings on one page and Data sharing settings on another, so look for either label.

And the screen sits inside Meta's embedded interface: in our development store, on October 12, 2026, with no Facebook account connected, the channel showed only Get support, Connect Facebook account and Get started, and no Settings item — so connect the account first.

Connect or create the pixel

With a level selected, the same screen offers the pixel itself. Shopify's wording: “Click Connect to connect a preexisting Meta pixel or click Create new to create a new Meta pixel.” A new pixel can be created right there in the channel or in Facebook Ads Manager; in Meta Events Manager, you click Connect data, select Web, click Connect, then enter a name and click Create pixel.

If your ads already run against a pixel, connect that one. Meta says you can use one pixel across your whole website, while noting there may be a need to use two.

To replace the pixel later, the Share data settings section has a Change button that removes the current pixel before you connect or create another.

Before you do either, check who else is sending data: Shopify says that if you work with an advertising agency or use an app to manage your Facebook ads or traffic, you should make sure that adding a Meta pixel won't cause duplicate or incorrect data in your reports.

If you would rather watch the clicks first, the video below is an app developer's walkthrough from February 2026, on Judge.me's channel, of installing the Facebook & Instagram app and creating and checking a pixel. Treat it as a demonstration of the screens; the settings and limits on this page come from Shopify's and Meta's own documentation.

Check the pixel's data access setting

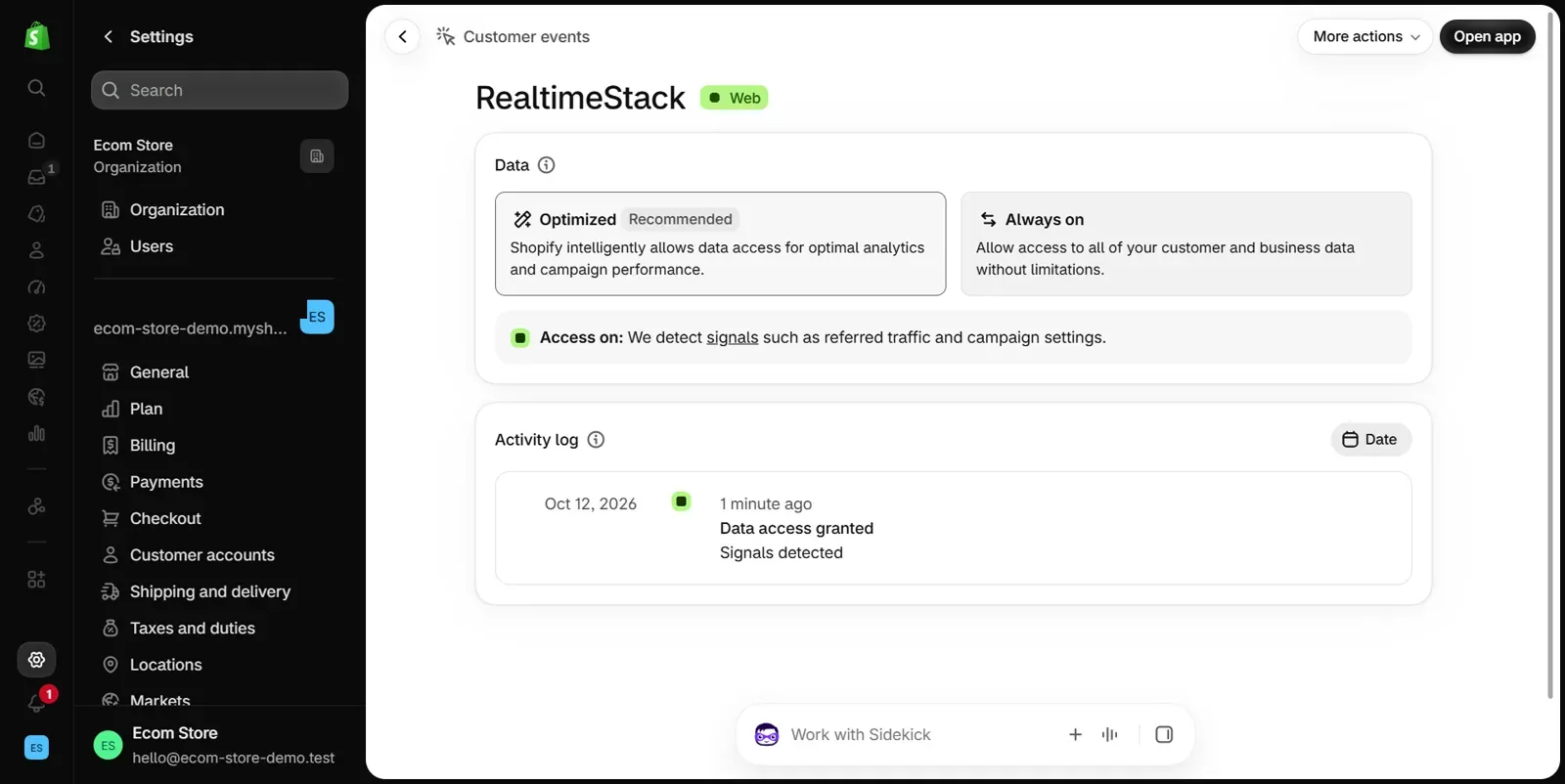

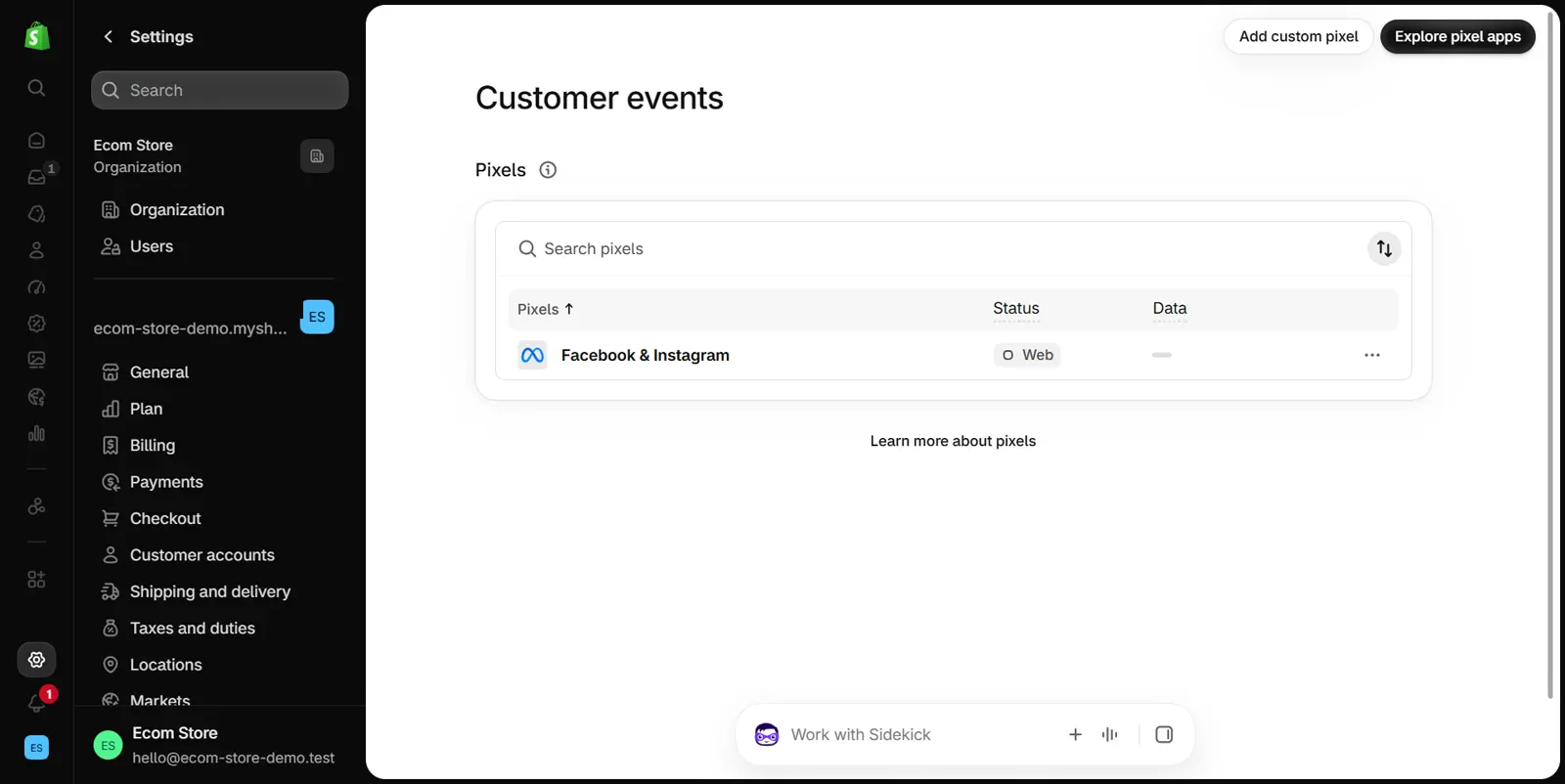

One more setting sits outside the channel. Under Settings > Customer events, Shopify gives app pixels two data access types, and by default the setting is Optimized. Under Optimized, when Shopify detects that a marketing pixel is sharing more data than is needed, it can pause some or all data shared by that pixel until relevant activity resumes.

Zoom

Meta's advice on data access runs the other way. Its help page on the Shopify integration says: “We recommend enabling Always On to help ensure the most reliable performance.” Shopify's changelog entry on the default describes the opt-out in the same place: adjust pixel settings in Settings > Customer events and set pixels to always on.

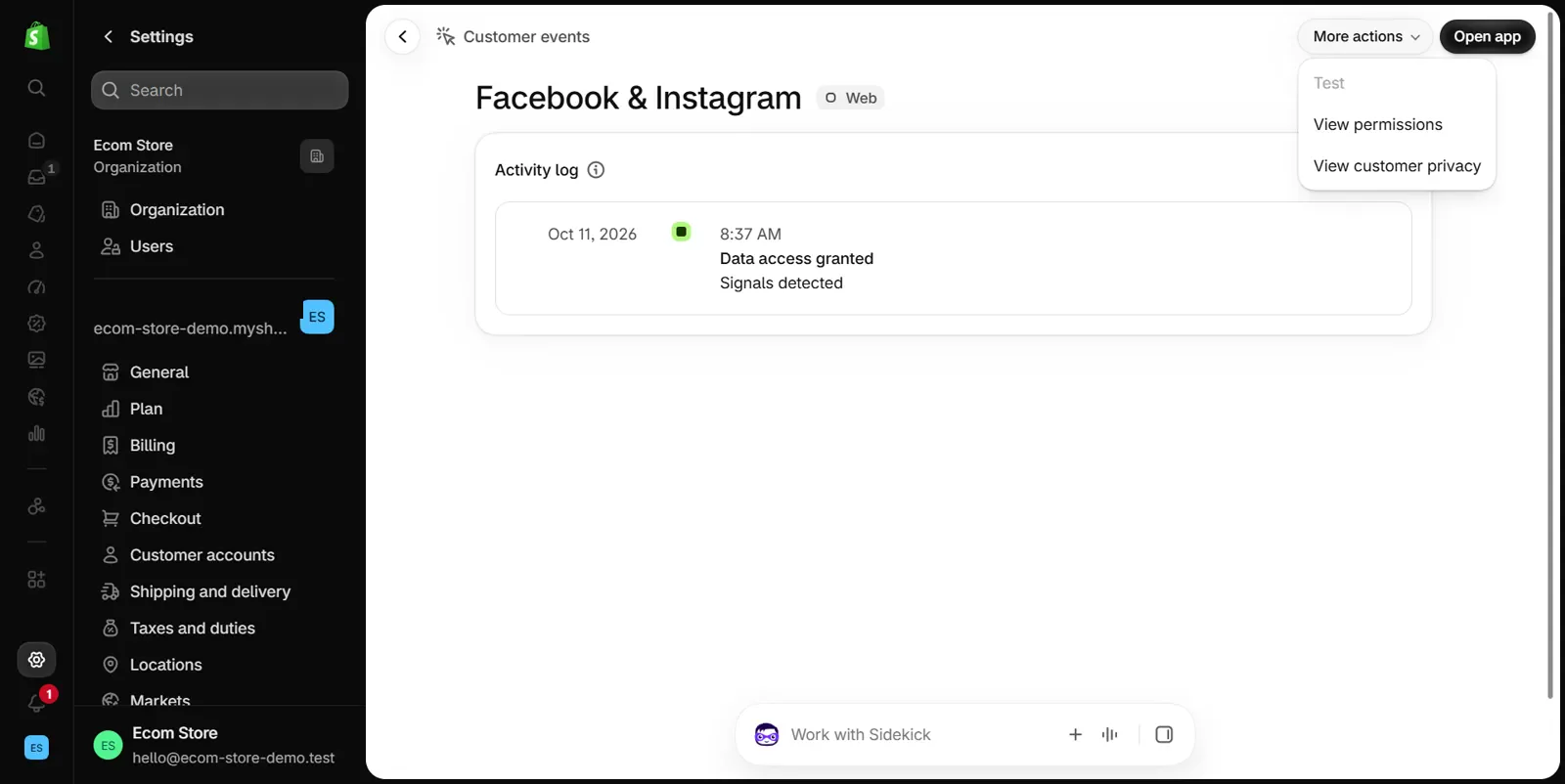

Shopify's steps for changing data access are short: click the name of the pixel that you want to update, select Optimized or Always on on the detail page, and click Save. In our development store, on October 12, 2026, the Facebook & Instagram row was already in the Customer events list, but its detail page showed an activity log and no Optimized or Always on option while no Facebook account was connected. On the pixel page of RealtimeStack, a third-party app we installed in the same store for the screenshot below, both options were there, with Optimized selected.

Zoom

If Customer events itself is greyed out for you, that is a permissions question, answered in why Customer events is greyed out.

Standard, Enhanced or Maximum: What Each Level Sends to Meta

Shopify's data-sharing settings offer three levels: Standard, Enhanced, or Maximum. The difference between them is what leaves your store: behavior only, or behavior plus the customer's personal details, and through the browser alone or between servers as well.

Put the two upper levels side by side and Shopify's descriptions run parallel. For Enhanced: “your store uses Facebook's Conversions API as well as the Meta pixel.” For Maximum: “your store uses Facebook's Conversions API, Meta pixel, and is updated with Facebook's latest advertising technology.” Both, in Shopify's words, share your customer's personal information to match users on Facebook's network.

Which personal details, exactly, depends on the page you read. Shopify's Facebook data sharing page lists the customer's name, location, email address and phone number, as well as their browsing behavior; its Meta pixel page lists name, location and email address. Both were read on October 11, 2026.

When you describe the sharing in your privacy policy, use the longer list. It covers either reading.

One more line on that page matters if your channel has been installed for years: “Depending on when you installed Facebook and Instagram by Meta, the customer data-sharing levels offer different privacy settings.”

Which level should you pick?

Shopify leaves this to you. Its page states that “Data sharing is a choice”, and none of the Shopify Help Center pages we read recommends Standard, Enhanced or Maximum over the others; the note at the end of this section lists what we read. What Shopify does attach to the choice is a duty.

The recommendation comes from Meta. Its help page on the Shopify integration tells merchants: “In your data sharing settings on Shopify, select Enhanced or Maximum.” A Shopify blog post on the pixel reports the same preference: “Meta recommends ‘Conversions API and Meta pixel’ for the best tracking and optimization.”

That is an ad platform's advice about its own measurement, so weigh it against what you are willing to send.

One Shopify source could mislead you about where the Conversions API starts. A Shopify blog post on the Conversions API describes “a Maximum option that turns on Facebook's Conversions API”, while the Help Center page describes the API under Enhanced as well. Go by the Help Center page and by the description shown beside each level in your admin.

In practice the decision is about the personal details. If your privacy policy and your consent setup are ready for a customer's name, location, email address and phone number to go to Meta, both upper levels add the server-to-server purchase event. If they are not, Standard keeps the sharing to behavior, and Shopify says the level can be changed at any time in the channel's settings.

What the Conversions API Does in Shopify's Setup

Meta describes the Conversions API as a direct and more reliable connection between your marketing data and Meta. On Shopify you don't build that connection: selecting Enhanced or Maximum turns it on. Shopify's description of what it does is one sentence long: “The Conversions API sends the purchase event between Shopify and Facebook servers.”

The reason to want it is the browser. Shopify says ad blockers can block a web pixel entirely, which prevents its events from being sent, while data sent from server to server can't be blocked by browser-based ad blockers. Meta makes the same point from its side — data from the Conversions API is less impacted than the Meta Pixel by browser loading errors, connectivity issues and ad blockers — and advises using the two together.

Less exposed to blockers is not the same as exempt from consent, and Meta says so itself.

So the server-to-server purchase event is a reliability feature, not a privacy workaround. What a customer's consent does to it comes after the events themselves.

Which events the channel tracks

Shopify lists seven events that the pixel tracks automatically once it is integrated with your online store. On the server side, its documentation names one.

That gap matters when you read Events Manager. None of the Shopify pages we read publishes a full list of the server events the channel sends beyond the purchase (see what we looked for and did not find), so what your own dataset receives from the server is something to observe in Meta's tools, not to assume.

Two details help when the numbers look odd. Events that track an order value use the order's total price — the sum of all the prices of all the items in the checkout, including duties, taxes and discounts. And names can differ between tools: Shopify notes that the event name in the Shopify Pixel Helper might be different in the third-party platform.

Does the channel deduplicate browser and server events?

On Enhanced and Maximum a purchase can reach Meta by two routes: once from the browser pixel and once between servers. Meta calls sharing the same events through both tools a redundant setup, and it puts a condition on it.

Meta's recommended method is simple to state: it determines whether events are identical based on their ID and name. Shopify's own blog explains the same rule — sending a matching event_id and event_name from both sources allows Meta to identify them as a single conversion.

Meta also describes a fallback: deduplication can occur if the event_name and either the external_ID or fbp parameters match. It says that method generally only works for events sent first from the browser and then through the server.

What none of the Shopify pages we read describes is whether or how the channel applies any of this for you. Shopify's blog explains deduplication in general terms; the pages about the channel itself are listed under what we looked for and did not find.

Meta does document automatic deduplication for its own Meta-enabled Conversions API, but that is a different setup, one of three ways Meta lists to set up the API. For commerce partner integrations, which Meta's Shopify page says Shopify integrations are part of, Meta lists “access to advanced Meta Pixel features like event deduplication” as a benefit and tells you to ensure server events are firing and deduplicated; that partner-integration page does not say the channel deduplicates automatically.

The cost of getting it wrong is concrete. Meta warns that without deduplication you may see artificially high conversion numbers, which can mislead optimization and budget allocation decisions.

Meta's Events Received figure is no check either: when you use both sources, Meta says it is the sum from both, not deduplicated. The check that works is a test order, described under how to check the pixel is working.

What a Customer's Consent Switches Off

Everything above describes what the pixel can send. What it does send for a given visitor is decided by your store's customer privacy settings. Shopify's cookie banner governs Shopify-specific tools, including cookies and Shopify Pixels, and Shopify says web pixels always respect your store's privacy settings.

Two settings do the work, and they answer two different legal models: opt-in consent, and opt-out of sale or sharing.

Where the cookie banner asks first

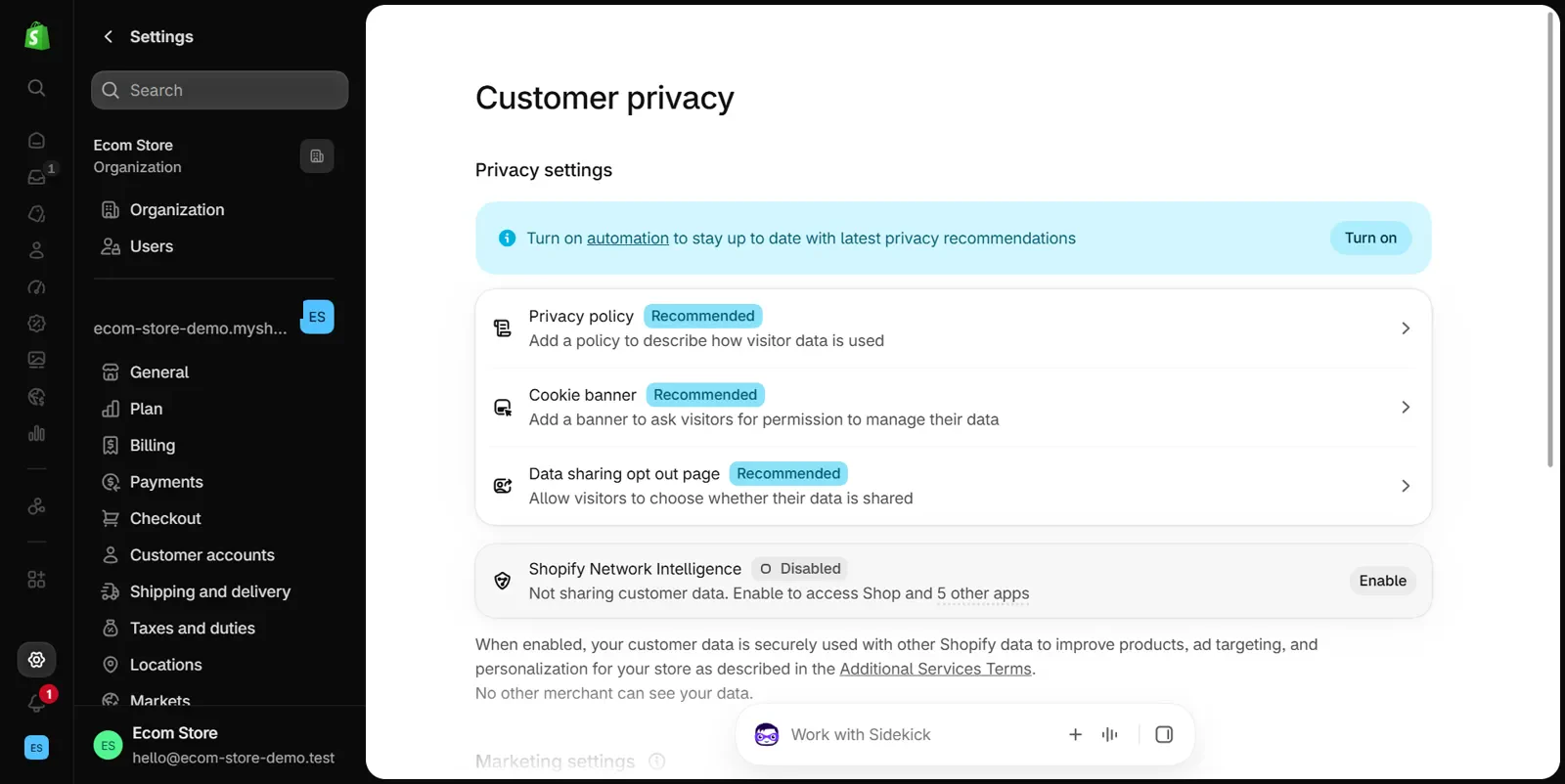

When you set up a new store, automated privacy settings are activated by default: Shopify configures your cookie banner for visitors in the UK and EEA regions, if you have active markets in these regions. By default, new pixels require Marketing and Analytics permissions before they run for such a visitor.

Zoom

In the regions the cookie banner covers, the effect on your numbers is direct. Shopify says non-essential data is collected only after obtaining consent, “which might reduce data available for analytics, marketing, and personalization”. A drop in Meta events from the EEA and the UK after the banner goes live can be the setting working.

The server side follows the same rule. Shopify states that server pixels are still subject to your store's customer privacy and consent settings. It says this about app pixels, which its app pixels page defines as scripts installed as part of a third-party app or sales channel; none of the Help Center pages we read names the Facebook & Instagram channel's pixel as one (see what we looked for and did not find), so treat it as the documented default and confirm it with a test visit where you decline the banner.

US states: opt-out of sale or sharing

Outside the regions you configure for the cookie banner, the banner is not active by default. Shopify describes that default as “intended for use in regions that don't require opt-in consent for cookies-based data collection, such as in the US”.

For those visitors Shopify offers a data sharing opt-out page: a dedicated page in your online store that lets visitors opt out of the sale or sharing of their personal data and of processing that may constitute targeted advertising. Before you can use one, you must publish a privacy policy.

The page also listens for a browser signal. When the Global Privacy Control header is present, Shopify says it activates opting out of data sale or sharing or targeted advertising for visitors in regions where you use a data sharing opt-out page. Whether a given state obliges you to honour that signal is a legal question, and we work through two states in the Virginia and Colorado opt-out signal FAQ.

Shopify is careful about where its part ends. Its page on US state privacy laws says such laws generally require companies to provide clear and conspicuous notice of, and allow consumers to opt out of, the “sale” of their personal information to third parties. It also says: “It's up to you to assess your legal obligations”.

What an opt-out does to a pixel depends on how the pixel is configured. Shopify says pixels configured as data sale won't run for customers that have opted out of data sales or sharing, unless the pixel supports limited data use. A new custom pixel qualifies as data sale by default.

On Meta's side, Limited Data Use is a data processing option you must proactively enable. Meta's page listed 14 US states where it is available for its Business Tools when we read it on October 11, 2026, and Meta warns that retargeting and measurement capabilities will be limited when it is enabled.

The link between the two is not documented. None of the Shopify pages we read says whether the Facebook & Instagram channel sets Limited Data Use for visitors from those states (see what we looked for and did not find).

How to Check the Pixel Is Working

Shopify's instruction after setup is brief: make sure the pixel is working by using Facebook Ads Manager, and if you've only just added it, wait for customer activity before any data is displayed. In practice you will meet six tools, on both sides.

One name will trip you up. Shopify's blog still tells readers to download the Meta Pixel Helper; Meta's developer page, as read on October 11, 2026, calls the same extension Meta Ads Data Advisor, “formerly Meta Pixel Helper”, and says an installed copy updates automatically. Search for the new name.

Run one test order

One order, watched from both sides, answers most questions about a new setup.

1. In Meta Events Manager, open Test events and, once you have selected your dataset, choose to test website events. Keep the page open: for website events, activity is only recorded while the test events page is open.
2. In the Shopify admin, go to Settings > Customer events, open the menu beside the pixel and click Test to open the Shopify Pixel Helper on your store.
3. Browse the storefront as a customer would: view a product, search, add to cart, start checkout.
4. Place a test order. Shopify says that to test the pixel on the Thank you page, you place a test order.
5. Back in Test events, check that the events arrived, then look at web event deduplication, which shows which events are processed and which are deduplicated.

Zoom

Zoom

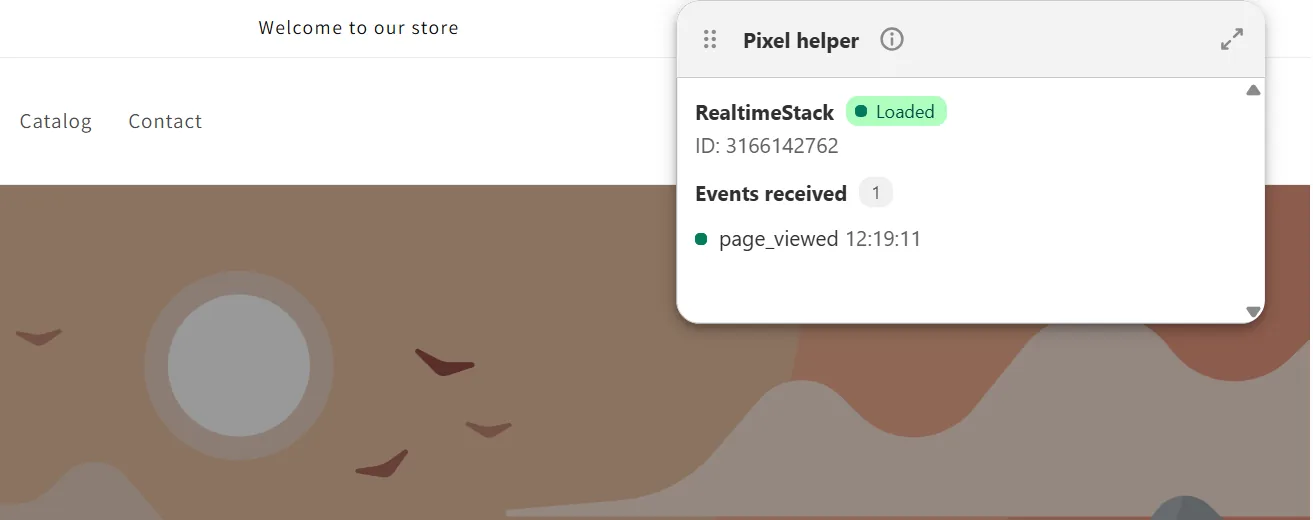

The Shopify Pixel Helper may not start recording at once. Depending on your store's consent settings and the app pixel's customer privacy settings, Shopify says its dialog might display “Pixel is awaiting consent” — the consent rule from the previous section showing up in the test.

Give Meta time before you judge the result. Test information remains in the test events tab for 24 hours or until cleared, and Meta says data may take 30 minutes or more to appear in your analytics after setting up your event.

What counts as working

The 75% event coverage ratio is Meta's target, not Shopify's, and it compares Conversions API events with Meta Pixel events. Event Match Quality is narrower still: a score from 0 to 10, available for website events sent through the Conversions API with the action source parameter set to Website.

None of the Shopify pages we read links the Enhanced and Maximum levels to Meta's advanced matching, or says whether the name, email and phone number are hashed (see what we looked for and did not find). Read the score in Meta's own tools; do not infer it from the level you picked.

When Events Are Missing or Doubled

Three symptoms are worth learning to recognise: Meta reports more purchases than Shopify has orders, the event count fell after you moved off old scripts, or nothing has fired on the Thank you page since the checkout upgrade. Each has a documented cause.

One fix in that table needs care: the reset Shopify gives for the “You haven't installed this app” and “Something went wrong” errors. Shopify warns that after you install the channel and connect any associated Facebook accounts, disconnecting any of those accounts can result in disconnecting all active Facebook features.

Purchase counted twice

Shopify calls tracking the same event more than 1 time a common issue when migrating, and its blog names one cause: “You might have a double install from an old theme snippet and the Shopify app.” The fix it gives is as short: delete the legacy code to avoid duplicate reporting.

To confirm it, Shopify's migration page tells you to open your browser's developer tools and check for multiple requests to the same analytics endpoint during a single page load or event. Its blog adds a second test: check whether more than one pixel ID is active on your site.

If both installs are yours, remove the pasted one. If one belongs to an agency or an app, that is the conversation Shopify's Meta pixel page tells you to have before adding a pixel.

A double count can also be a deduplication failure. Shopify's blog says it occurs when both the pixel and Conversions API send the same event without a matching event_id, and its solution is to use the Diagnostics tab to confirm whether Meta is receiving duplicate errors and to check that you don't have multiple pixel installs. None of the Shopify pages we read says how the channel handles that matching (see what we looked for and did not find), so record what Test events shows for a test order and raise it with Meta, which maintains the channel.

Fewer events than before, or fewer than Shopify's orders

A lower count after a migration can be the system working as designed: pixels in Customer events wait for consent where the old scripts may not have. Shopify adds a second, smaller effect: because some bots don't trigger the web pixel sandbox, single-digit percentage dips in event counts are expected.

A gap between Meta and Shopify has its own causes. Intelligent tracking prevention shortens or limits cookies, which Shopify says reduces attribution accuracy even though the pixel still runs and sends events, and ad blockers can block the web pixel entirely. Neither touches your store's own numbers: “your Shopify reports and order records aren't affected, because Shopify records order and analytics data when the order is processed”.

For ad blockers, that is the practical case for a level with the Conversions API: Shopify says data sent from server to server can't be blocked by browser-based ad blockers.

If the Thank you or Order status page is the only place events are missing, check two things. First, that nothing still relies on Additional scripts. Second, on a custom domain, that your customer accounts domain is a subdomain of the store's — otherwise, Shopify says, pixels and cookie consent won't work for the new Order status page, because the domain must be the same as where consent is obtained.

The Bottom Line

The clicks take minutes. What takes thought sits on either side of them: what your visitors have agreed to, what an older install is still sending, and whether a purchase that travels by two roads is counted once.
